DeWalt 20V to Dyson V8 Battery Adapter
$47.00
Skip to product information
DeWalt 20V to Dyson V8 Battery Adapter
$47.00
Taxes included.
Free Shipping to Canada, USA and Australia! No minimum.
Safety feature
Built-in BMS Protection
Integrated Battery Management System (BMS) helps prevent battery over-discharge and improves safety.

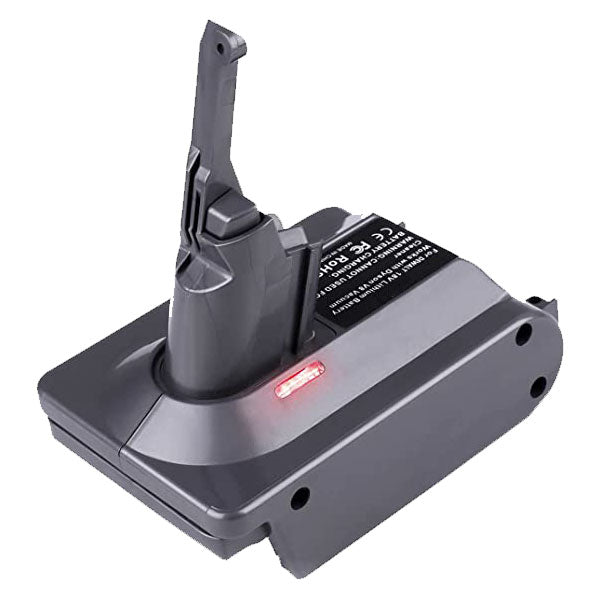

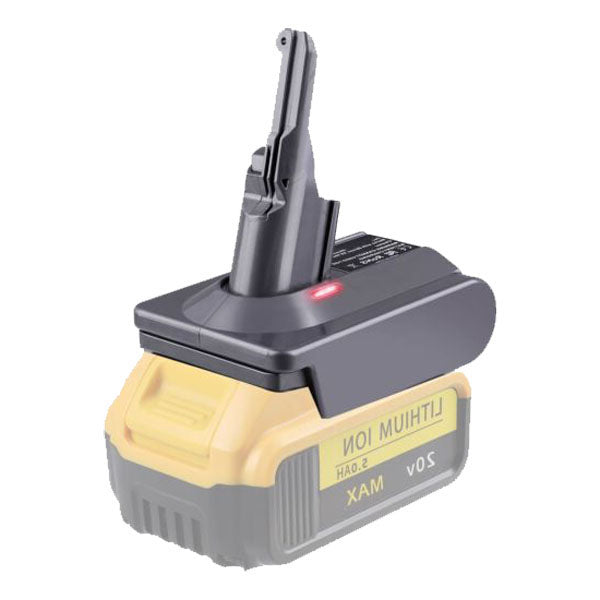

Use your DeWalt 20V MAX batteries on Dyson V8 cordless tools, without buying into a second battery platform. Constructed from durable molded ABS with pure copper contacts, for a secure fit and dependable current transfer. It keeps one battery platform serving more tools, which costs less than buying into another. It also carries battery protection electronics (BMS) inside.
Specifications
- SKU
- PTA-DWM20-DYSV8
- Fits this battery
- DeWalt 20V MAX (Lithium-Ion)
- Battery voltage
- 20V
- Runs these tools
- Dyson V8 (Lithium-Ion)
- Housing
- ABS (Injected)
- Terminals
- Copper
- Current rating
- 55A continuous (100A peak at 18VDC for up to 2 seconds)
- Weight
- 156 g (5.5 oz / 0.34 lb)
- Colour
- Grey
- Operating humidity
- 5–95% RH
- Operating temperature
- -10 °C to 50 °C (14 °F to 122 °F)
- USB port
- No
- Built-in BMS protection
- Yes
- What's in the box
- Battery adapter
- Warranty
- 12 months after the date of deliveryMore details
Why choose this adapter
- A Battery Management System inside the adapter cuts power before the battery is drained too far — protection your battery may not have on its own.
- Injection-moulded ABS, not 3D printed — no layer lines to split under load.
- Solid copper terminals, so less of the current is lost as heat.
- Rated for 55A continuous with 100A peak at 18VDC for up to 2 seconds, so a high-draw tool is not held back by the adapter.
- Covered by a 12-month warranty from the day it arrives.
DeWalt 20V MAX and Dyson V8 compatibility
It works in one direction only: DeWalt batteries powering Dyson tools. For the opposite pairing, see adapters that run on Dyson V8 batteries.
Compatibility can vary with the exact battery and tool model. Before ordering, confirm that your battery belongs to the DeWalt 20V MAX platform and that your tool takes Dyson V8 batteries.
Important charging and safety information
This adapter is for powering cordless tools and nothing else. It cannot charge DeWalt or Dyson batteries and must never be connected to a charger of any kind. Always take the battery out of the adapter before charging, and charge it on the original charger made for your DeWalt 20V MAX battery.

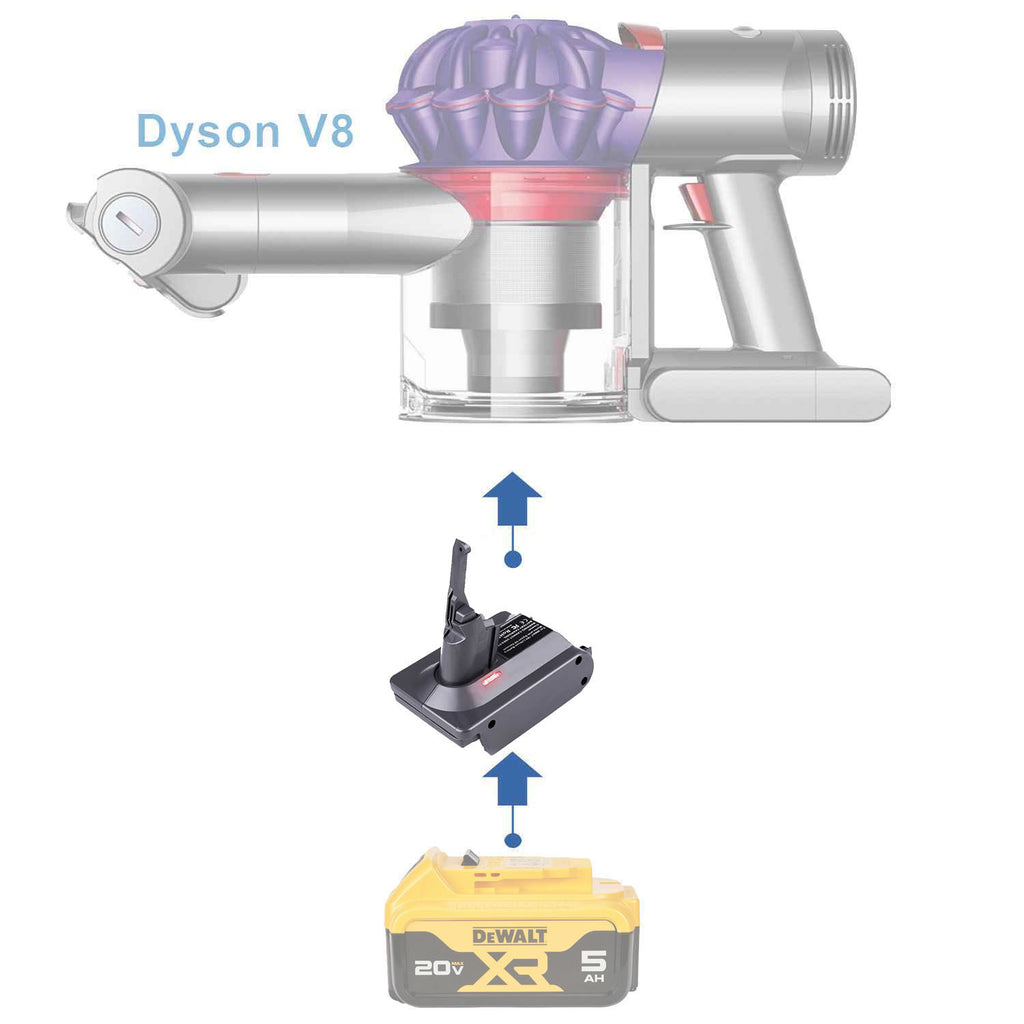

How it works
-
1. Use the battery you own
Any compatible DeWalt 20V MAX battery of 3Ah or more.
-
2. Slide on the adapter
It goes where the original Dyson V8 battery sits.
-
3. Click in and work
No tools, no wiring, no modifications.
DeWalt 20V MAX to Dyson V8 — Common Questions
My battery says 20V. Can it run a tool rated differently?
Yes, and they are closer than the labels suggest. 20V is what a DeWalt 20V MAX battery measures off the charger with no load; 18 V is what it holds in use. Dyson V8 tools are built around 21.6 V. The two numbers describe the same class of battery, which is why the adapter works rather than merely fits.
Will this fit my other DeWalt batteries?
Only DeWalt 20V MAX batteries. DeWalt also sells DeWalt 12V MAX, DeWalt 18V Ni-Cd, and those use a different socket — same brand, different rail and contacts, so they need their own adapter. Compare the rail on your battery with the photos before ordering.
Will my Dyson V8 tool run as long on a DeWalt 20V MAX battery?
Runtime comes from the battery, not the adapter: a 5.0Ah DeWalt 20V MAX battery lasts roughly twice as long as a 2.5Ah one. For this pairing use 3.0 Ah or more — a smaller battery can sag under what a Dyson V8 tool draws and cut out before it is empty.
Could this damage my DeWalt 20V MAX battery or my Dyson V8 tool?
Used with undamaged, compatible equipment it is not expected to. This adapter has its own Battery Management System, which cuts power before the battery is drained too far, so it protects the battery even where the battery has no protection of its own. Stop using it if the adapter becomes unusually hot, the contacts look damaged, or the tool behaves oddly.
Can I charge through the adapter?
No, and it should never be attempted. The adapter carries power one way only, out to the Dyson V8 tool — there is no charging circuit inside it. Connecting it to a charger puts the battery, the charger and the adapter at risk. Always take the DeWalt 20V MAX battery off the adapter and charge it on its own charger.
Does it work with third-party DeWalt batteries?
Usually. What matters is the socket, not the badge: if the battery slides on and locks the way an original does, the adapter takes it and the Dyson V8 tool runs. Aftermarket moulding does vary, so if yours looks unusual send us a photo and we will check before you order.
How much does it add to the Dyson V8 tool?
156 g (5.5 oz) and a short extension between battery and tool. You notice it overhead or in a tight cabinet; on a drill or driver held normally it disappears.
